Amplificateur stéréophonique Marantz 32

Informations générales* :

Years of production 1970-76
Retail Price US 295 USD
Dimensions (L x H x P) en mm 390 x 146 x 245
Weight in kg 9.5
Power Requirements 110/120 or 220/240 VAC @ 50/60 Hz
Power Consumption 500 Watts
AC Outlets No
Channel 2
Preamp/amp Separation Non
Speaker Connections 2
Transistors 31
Diodes 20
Matching Preamp 30 ou 33
Matching Tuner 20 ou 23 ou 24
Woodcase WC2
Owner’s Manual
Service Manual → Marantz 32 Service Manual
Catalogue

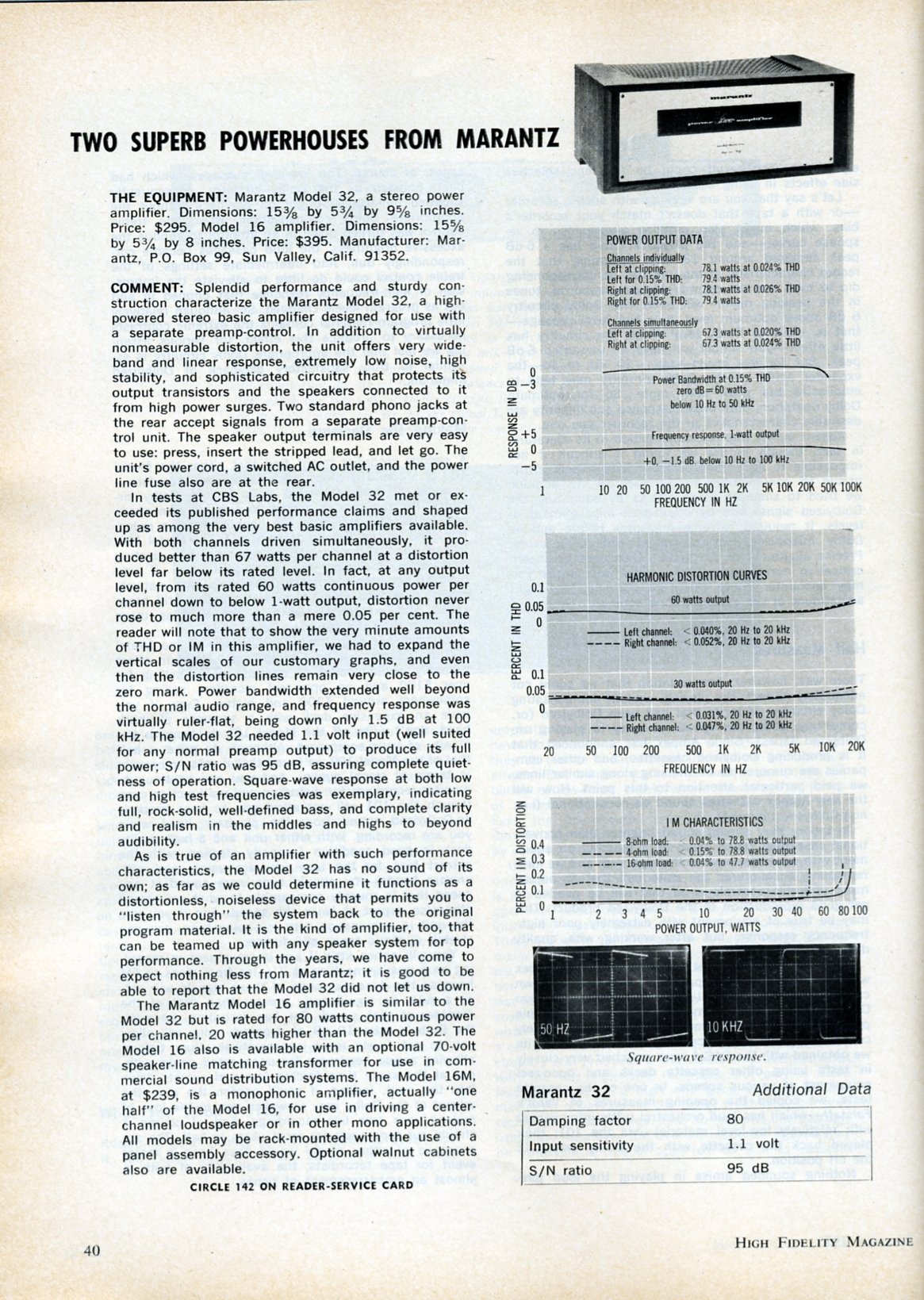

Test → Marantz 32 Test High Fidelity Magazine

*Informations extraites des brochures Marantz

Spécifications du constructeur* :

Power Output @ 8 Ω, per channel 60 W RMS
Frequency Response 3 Hz to 80 kHz, +0, -3.0 dB
Power Bandwith 20 Hz – 20000 Hz, ± 0.25 dB
Channel Separation (20 – 20 kHz) 40 dB
Total Harmonic Distorsion (20 – 20 kHz) < 0.15 %
Intermodulation Distorsion (20 – 20 kHz) < 0.15 %
S/N Ratio > 100 dB
Input Sensitivity 1.0 V
Input Impedance 100 kΩ
Damping Factor @ 8 Ω (1 kHz) > 100

*Informations extraites des brochures Marantz
